lorem ipsum dolor sit 林海卫士热成像摄像机
lorem ipsum dolor sit 林海卫士热成像摄像机

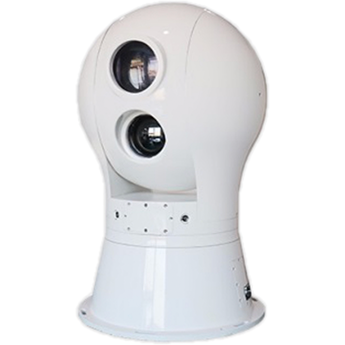

Large-scale Forest Fire Prevention Detector

10KM/双光谱

    • * HH160 (100/150-775/1000 - B)
    • Thermal imaging system:100 mm or 150 mm focal length, or continuous zoom lens(optional)
    • Visible light imaging system: 500 mm, 775 mm and 1000mm telephoto lens(optional)


online inquiry

PROCUCT OVERVIEW

产品概述

Large-scale forest fire prevention detector independently developed by Haohai Technology is combined by front-end monitoring equipment equipped with dual mode of visible light and infrared thermal imaging system and intelligent image recognition algorithm , aiming to realize forest fire prevention and forest resources monitoring in forest, mountain or forest region within a radius of 15 km. It can achieve remote real-time image acquisition , monitoring and analysis, and can be used for various occasions, such as forest fire prevention, scenic spots and gardens, etc.


1. Conform to the requirements of ‘Technical specifications for forest fire prevention video monitoring systems (LY/t2581-2016)’ made by the National Forestry Bureau.

2. Support long-focus HD lens, auto-focus lens and optical fog-penetration lens in order to clearer picture.

3. Support real-time parameters transmission and 3D precise positioning.

4. Support multiple-spectral video and heat-detection and fire recognition algorithm, greatly increasing the fire recognition accuracy

5. Ensure high-quality images by using HD visible light cameras with 1080 p @30 frames  and thermal imaging cameras with D1 @ 25 frames.

6. visible light identification mode: support adjustment of environment variable and trigger fire alarm with smoke size exceeding 6 * 6 pixel or fire area exceeding 1 * 2 pixels.

7. Heat image recognition: supports area shield, regional heat value management, heat value abnormal alarm, super-threshold alarm

8. square box design, all-metal shell, stable and reliable operation, anti-corrosion coating, strong adaptive abilities to environment.

9. Modular assembly, drawer-type design, concealed routing, easy maintenance of cloud platform.

10. PTZ protection grade is IP66. Shield protection grade is IP66H.

11.  Operation temperature: -25 ℃ ~ 65 ℃


SPECIFICATION

技术参数

Model

model

HH160(75-42X-B)

HH160(75-500-B)

HH160(100-42X-B)

HH160(100-500-B)

name

Thermal imaging dual-spectrum intelligent  camera

Thermal lens

sensor

Vanadium oxide uncooled focal plane detector

Image size

384*288

Piexl distance

25μm

Response wave band

8~14μm

sensitivity

<50mk(@25°C,F=1.0)

Focal length

Fixed-focus 75mm

Fixed-focus 100mmoptional

Detection distance

2KM

5KM

Alarm area

0.3

0.5

Fvalue

F1.0



focusing

manual/automatic/one-key focus



Visible camera

sensor

1/2.8 inch high-performance CMOS

Resolution ratio

1920×1080

Focus length

7.6-320mm

15.6-500mm

7.6-320mm

15.6-500mm

Optical zoom lens

42X

32X

42X

32X

low illumination

0.02Lux

0.002Lux

0.02Lux

0.002Lux

Wide dynamic

support

Day and night conversion

support

Digital noise reduction

3D noise reduction

focussing

Auto/electric/one-key focus

Fog penetration

support

Regional enhancement

ROI

Pan tilt

Horizontal range

0°~360°

Horizontal speed

0.01°-60°/s,settable

Vertical range

-75°~+75°(automatic)

Vertical speed

0.01°-304°/s,settable

load

 30KG

Return of angle

support

preset

1024

Cruising mode

Spiral scan, peel scan, preset scan, customized scan

Forest fire detection

False alarm rate

Less than 2 false alarms per day for 10,000 hectare

Missing alarm rate

1

Accuracy of fire location

0.1°,The positioning error is less than 50 meters

Alarm pixel

Fire target1*2pixel smoke target6*6 pixel

Alarm confirmation time

10s

Alarm distance and area

5KM@0.3

Cruise cycle

5 minutes

Other parameters

Working temperature and humidity

-45-70℃,humidity 90%

Protection grade

Protection grade of pan tilt IP66Protection grade of shieldIP67

Power consumption

120W  max
