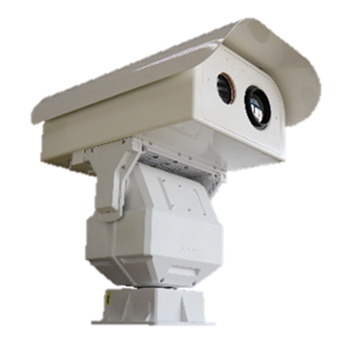

HD laser surveillance camera
- strong wind resistence
- stable operation
- high accuracy
- operate normally in cold areas
PROCUCT OVERVIEW
产品概述Product Application：
Smart city, traffic monitoring, scenic spot monitoring, petroleum, chemical industry, mine, military industry, gas station, fireworks production, etc.
Product features：
1.The body of HD laser camera is made of high strength aluminum alloy material and the appearance design is characterized by strong wind resistence, stable operation, high accuracy.
2.The product combines the high-precision stepping motor with the precision worm gear transmission mode, self-locking can be achieved by power off.
3.Support a variety of lens preset, zoom adaptation. rotation speed can be adjusted automatically according to the lens zoom.
4.with preset, cruise, line sweep, keep watching and other functions.
5.The equipment has its own automatic heating system and automatically start heating function at low temperature, ensuring that the product can operate normally in cold areas.
6.The network can transmit signals up to 100Mbps
7.The equipment supports RS485/RS422 communication interface, which can upgrade the equipment program remotely and facilitate equipment maintenance.
8.Power off memory function: power on again after unexpected power off can be restored to the running state before power off.
SPECIFICATION
技术参数|
product type |
|
|
IP grade |
IP66 |
|
Sensor size |
1/1.8'' CMOS |
|
total pixels |
2 million piexls |
|
Focal length |
6.21~198.72mm，32 times |
|
Laser |
fill-in light distance
:800m |
|
PTZ |
Horizontal :0°~360°，vertical:-90°~+40° |
|
Rotaion speed |
Horizontal：0.1°~60°/s，vertical:0.1~30°/s |
|
Returen of angle
parameter |
Support real-time return
of Angle parameters, overlay to camera image |
|
preset |
More than 200 presets |
|
Cruising path |
Multiple cruising path |
|
Keep watching |
Support preset, line
sweep, cruise, ring sweep |
|
Laser zoom control |
Support linkage with
the lens zoom /manual, coaxiality error ≤1/4 |
|
laser illumination |
Support linkage/manual
with camera |
|
3Dlocation |
support |
|
Operation temperature |
-25~70° |
|
operating voltage
range |
DC24V±10% |
|
Wind resistance level |
10 |
|
Anti-surge level |
The power supply
conforms to GB/T17626.5 level 4 standard; Network three-level standard |
